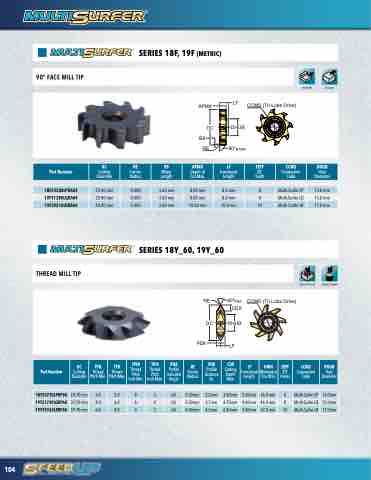

Page 104 - CAT-028-1 SFeedUp New Products Catalog

104
90° FACE MILL TIP
Part Number
18F24280LPRA04 19F31280LQRA04 19F39210LRRA04
THREAD MILL TIP
DC
Cutting Diameter
25.00 mm 32.00 mm 40.00 mm
RE
Corner Radius
0.400 0.400 0.400
BS
Wiper Length
3.60 mm 3.60 mm 3.60 mm
ZEFF
Eff. Teeth
8 8 10
CCMS
Connection Code
DHUB
Hub Diameter
13.0 mm 15.0 mm 17.0 mm
Part Number
18Y24730LPRP60 19Y31740LQRP60 19Y39760LRRP60
Cutting Diameter
24.70 mm 31.70 mm 39.70 mm
Thread Pitch Min.
3.0 4.0 6.0
Thread Pitch Max.
5.0 6.0 8.0
Thread Pitch Inch Min.
Thread Profile Pitch Included
Corner Radius
0.20mm 0.30mm 0.40mm
Profile Distance Ex.
Cutting Depth Max.
3.50mm 4.70mm 6.20mm
Functional Workpiece Eff. Length. Dia. Min. Flutes
5.50mm 36.0 mm 6 4.00mm 46.0 mm 8 5.00mm 57.0 mm 10
Connection Code
Multi-Surfer LP Multi-Surfer LQ Multi-Surfer LR
Hub Diameter
13.0mm 15.0mm 17.0mm
SERIES 18F, 19F (METRIC)
APMX
DC
RE
APMX
Depth of Cut Max.
8.00 mm 8.00 mm 10.00 mm
LF
DHUB
90°KAPR
LF
Functional Length
8.0 mm 8.0 mm 10.0 mm
CCMS (Tri-Lobe Drive)
SERIES 18Y_60, 19Y_60
RE 60oPNA CDX
DC DHUB
PDX
Internal Thread
External Thread
BS
DC TPN TPX TPIN TPIX PNA RE PDX CDX LF DWN ZEFF CCMS DHUB
8 6 4
Inch Max. Angle
5 60 4 60 3 60
2.2mm 3.7mm 4.5mm
LF
CCMS (Tri-Lobe Drive)
Multi-Surfer LP Multi-Surfer LQ Multi-Surfer LR
Shoulder
Facaing
