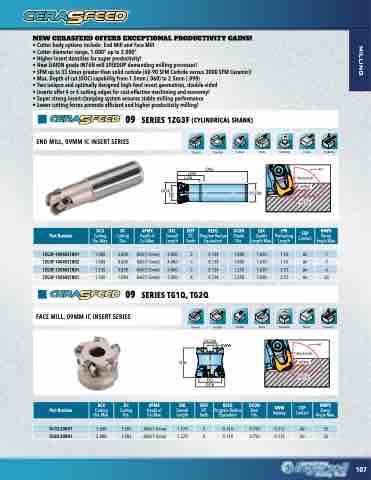

Page 107 - CAT-028-1 SFeedUp New Products Catalog

NEW CERASFEED OFFERS EXCEPTIONAL PRODUCTIVITY GAINS!
• Cutter body options include: End Mill and Face Mill
• Cutter diameter range, 1.000" up to 3.000"
• Higher insert densities for super productivity!
• New SiAlON grade IN76N will SFEEDUP demanding milling processes!
• SFM up to 33 times greater than solid carbide (60-90 SFM Carbide versus 3000 SFM Ceramic)! • Max. Depth of cut (DOC) capability from 1.5mm (.060) to 2.5mm (.098)
• Two unique and optimally designed high-feed insert geometries, double-sided • Inserts offer 4 or 6 cutting edges for cost-effective machining and economy!
• Super strong insert clamping system ensures stable milling performance
• Lower cutting forces promote efficient and higher productivity milling!
09 SERIES 1ZG3F (CYLINDRICAL SHANK) END MILL, 09MM IC INSERT SERIES
milling
Part Number
1ZG3F-10040S1R01 1ZG3F-10040S1R02 1ZG3F-12050S1R01 1ZG3F-15050S1R01
DCX
Cutting Dia. Max.
1.000 1.000 1.250 1.500
DC
Cutting Dia.
0.600 0.600 0.838 1.084
APMX
Depth of Cut Max.
.060 (1.5mm) .060 (1.5mm) .060 (1.5mm) .060 (1.5mm)
OAL ZEFF
Overall Eff. Length Teeth
4.000 2 4.000 3 5.000 3 5.000 4
LPR
Protruding Length
1.76 1.76 2.72 2.72
Corkscrew
CSP RMPX
Coolant Ramp Angle Max.
Air .7 Air .7 Air .6 Air .65
Facing Pocketing
90° Backdraft
APMX
REEQ
CSP RMPX
Coolant Ramp Angle Max.
Air .55 Air .55
09 SERIESTG1Q,TG2Q FACE MILL, 09MM IC INSERT SERIES
Part Number
TG1Q-20R01 TG2Q-20R01
DCX
Cutting Dia. Max.
2.000 2.000
DC
Cutting Dia.
1.583 1.583
APMX
Depth of Cut Max.
.060 (1.5mm) .060 (1.5mm)
OAL
OAL
Overall Length
1.570 1.570
ZEFF REEQ
DCON
KWW
Keyway
0.312 0.312
DCX DC
Backdraft APMX
REEQ
LPR LUX
Shoulder
OAL
REEQ
Program Radius Equivalent
0.134 0.134 0.134 0.134
90°
Channel
Contour Ramp
DCON
DCON LUX
Shank Usable Dia. Length Max.
1.000 1.600 1.000 1.600 1.250 1.600 1.250 1.600
Contour Ramp
Corkscrew
Facing Pocketing
Channel
Shoulder
DCON KWW
DC DCX
Eff. Program Radius Bore Teeth Equivalent Dia.
5 0.134 0.750 4 0.134 0.750
107
