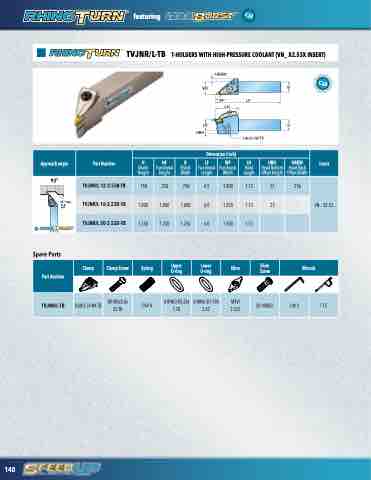

Page 140 - CAT-028-1 SFeedUp New Products Catalog
P. 140
B
H TF
93°
44° max.
140
Approach angle
Part Number
TVJNR/L 12-2.53B-TB TVJNR/L 16-2.53D-TB TVJNR/L 20-2.53D-TB
H HF
Shank Functional Height Height
.750 .750 1.000 1.000 1.250 1.250
Spring
DSP 4
B
Shank Width
.750 1.000 1.250
LF
Functional Length
4.5 6.0 6.0
Lower O-ring
O-RING ID7.59x 2.62
WF
Functional Width
1.000 1.250 1.500
Shim
MSVI 2.522
LH
Head Length
1.73 1.73 1.73
HBH
Head Bottom Offset Height
.31 .25 -
Shim Screw
SO 40085I
HBKW
Head Back Offset Width
.256 -
-
Spare Parts
Part Number
TVJNR/L-TB
Clamp
DLM 2.5V-NX-TB
Clamp Screw
BH M5x0.8x 25-TB
Upper O-ring
O-RING ID5.28x 1.78
L-W 3
T 15
featuring
TVJNR/L-TB
T-HOLDERS WITH HIGH-PRESSURE COOLANT (VN_ X2.53X INSERT)
HBKW
WF
HBH
1/8-27 NPTF
93° LF LH
44° max.
Insert
VN... X2.53...
Wrench
HF H
Dimension (inch)
B
