Page 143 - CAT-028-1 SFeedUp New Products Catalog
P. 143
WF 95°
Approach angle
LF 95°
Spare Parts
Part Number
A-TCLNR/L-TB
DCON
Part Number
DCON
Shank Diameter
1.000 1.250
Spring
DSP 3
DMIN
Min. Bore Diameter
1.250 1.500
Upper O-ring
O-RING ID4.47x 1.78
LF
Functional Length
12.0 14.0
Lower O-ring
O-RING ID6.07x 1.78
WF
Functional Width
.64 .77
Shim
LSC 32
LDRED
Reduced Body Dia. Length
1.38 1.38
Shim screw
SO 40073I
H
Insert
CN... 33...
LDRED
H
Shank Height
.92 1.17
1/4-18 NPTF
LDRED
LF
Dimension (inch)
A16T-TCLNR/L-33-TB A20U-TCLNR/L-33-TB
Clamp
DLM 3-NX-TB
Clamp screw
BH M4x0.7x 16-TB
Wrench
featuring
A-TCLNR/L-TB

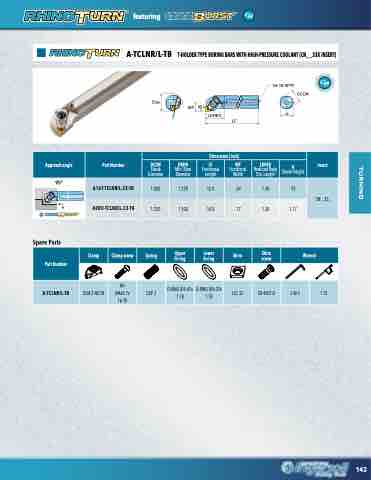

T-HOLDER TYPE BORING BARS WITH HIGH-PRESSURE COOLANT (CN_ _33X INSERT)
1/4-18 NPTF
DCON
H
DMIN
WF 95°
turning
L-W 3
T 15
143
