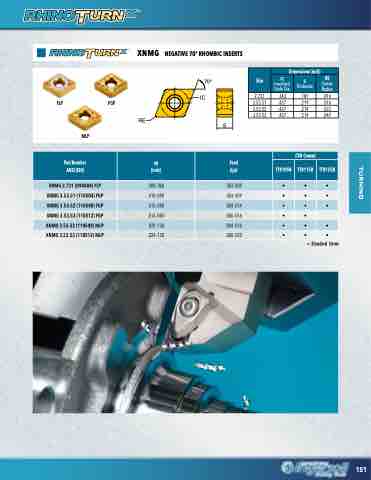

XNMG NEGATIVE 70o RHOMBIC INSERTS
70° IC
Size
IC
Inscribed Circle Dia.
S
Thickness
RE
Corner Radius
2.731
.343
.187
.016
3.53.51
.437
.219
.016
FLP
FGP
3.53.52
.437
.219
.031
3.53.53
.437
.219
.047
MLP
RE
S
Dimensions (inch)
Part Number ANSI (ISO)
ap (inch)
Feed (ipr)
CVD Coated
TT8105B
TT8115B
TT8125B
XNMG 2.731 (090404) FLP
.008-.060
.003-.009
•
•
•
XNMG 3.53.51 (110504) FGP
.010-.080
.003-.009
•
•
•
XNMG 3.53.52 (110508) FGP
.012-.080
.004-.014
•
•
•
XNMG 3.53.53 (110512) FGP
.014-.080
.006-.016
•
•
XNMG 3.53.52 (110508) MLP
.020-.138
.004-.016
•
•
•
XNMG 3.53.53 (110512) MLP
.024-.138
.006-.020
•
•
•
•: Standard items
