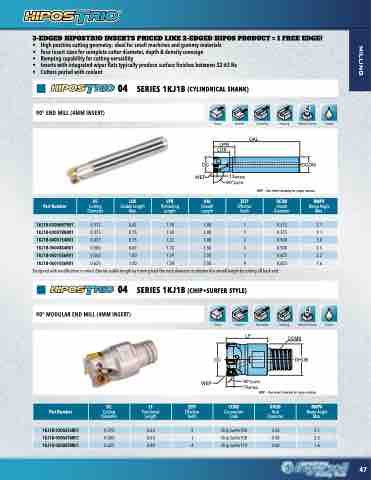

Page 47 - CAT-028-1 SFeedUp New Products Catalog

3-EDGED HIPOSTRIO INSERTS PRICED LIKE 2-EDGED HIPOS PRODUCT = 1 FREE EDGE!
• High positive cutting geometry; ideal for small machines and gummy materials
• Four insert sizes for complete cutter diameter, depth & density coverage
• Ramping capability for cutting versatility
• Inserts with integrated wiper flats typically produce surface finishes between 32-63 Ra • Cutters ported with coolant
milling
90° END MILL (4MM INSERT)
Part Number
1KJ1B-03006R7R01 1KJ1B-03007R8R01 1KJ1B-04007S4R01 1KJ1B-05008S4R01 1KJ1B-05010S6R01 1KJ1B-06010S6R01
DC
Cutting Diameter
0.312 0.375 0.437 0.500 0.562 0.625
LUX
LPR
Protruding Length
DCON
Shank Diameter
0.312 0.375 0.500 0.500 0.625 0.625
RMPX
Designed with modification in mind. Extend usable length by
04
90° MODULAR END MILL (4MM INSERT)
turning back the neck
diameter or shorten the overall length by cutting off back end.
Part Number
1KJ1B-03006T6R01 1KJ1B-05006T8R01 1KJ1B-06008TRR01
DC
Cutting Diameter
0.375 0.500 0.625
LF ZEFF
Functional Effective Length Teeth
0.63 2 0.65 3 0.80 4
CCMS
Connection Code
Hub Ramp Angle Diameter Max.
0.36 2.1 0.48 2.5 0.60 1.6
04
SERIES 1KJ1B (CYLINDRICAL SHANK)
Usable Length Max.
0.62 0.75 0.75 0.87 1.00 1.00
1.58 1.58 1.22 1.72 1.59 1.59
Ramp Angle Max.
2.1 2.1 3.0 2.5 2.2 1.6
Helical/Corkscrew
SERIES 1KJ1B (CHIP•SURFER STYLE)
WEP
90°KAPR
Facing
Shoulder
Channeling
Ramping
Helical/Corkscrew
DCON
Coolant
OAL LPR
LUX
DC WEP
OAL ZEFF
Overall Effective Length Teeth
3.00 1 3.00 1 3.00 2 3.50 3 3.50 3 3.50 4
.13APMX
90°KAPR
Facing
DC
Chip Surfer T06 Chip Surfer T08 Chip Surfer T10
Shoulder
Channeling
Ramping
Coolant
LF
CCMS DHUB
WEP - See insert drawing for wiper options.
DHUB RMPX
.13APMX
WEP - See insert drawing for wiper options.
