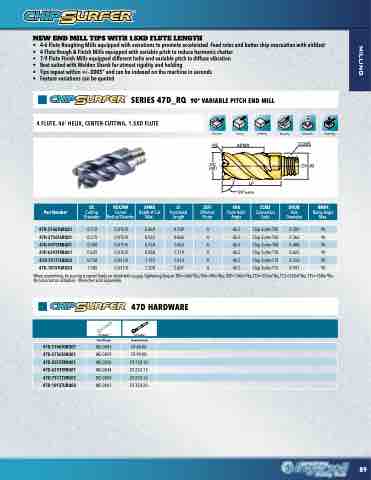

Page 89 - CAT-028-1 SFeedUp New Products Catalog

NEW END MILL TIPS WITH 1.5XD FLUTE LENGTH
• 4-6 Flute Roughing Mills equipped with serrations to promote accelerated Feed rates and better chip evacuation with airblast • 4 Flute Rough & Finish Mills equipped with variable pitch to reduce harmonic chatter
• 7-9 Flute Finish Mills equipped different helix and variable pitch to diffuse vibration
• Best suited with Weldon Shank for utmost rigidity and holding
milling
• Tips repeat within +/-.0005” and can be indexed on the machine in seconds • Feature variations can be quoted
SERIES 47D_RQ 90o VARIABLE PITCH END MILL
4 FLUTE, 46' HELIX, CENTER-CUTTING, 1.5XD FLUTE
Part Number
47D-3146TQRQ01 47D-3756T6RQ01 47D-5075T8RQ01 47D-6293TRRQ01 47D-7511TSRQ03 47D-1015TURQ03
DC RE/CHW
Cutting Corner Diameter Radius/Chamfer
0.312 0.015 R 0.375 0.015 R 0.500 0.015 R 0.625 0.015 R 0.750 0.031 R 1.000 0.031 R
APMX
Depth of Cut Max.
0.469 0.563 0.750 0.938 1.125 1.500
CCMS DHUB
Connection Hub Code Diameter
Chip Surfer T05 0.300 Chip Surfer T06 0.366 Chip Surfer T08 0.488 Chip Surfer T10 0.602 Chip Surfer T12 0.726 Chip Surfer T15 0.941
Pocketing
RMPX
Ramp Angle Max.
90 90 90 90 90 90
Shoulder
RE
DC (e8)
LF ZEFF
Functional Effective Length Flutes
0.709 4 0.866 4 1.063 4 1.319 4 1.614 4 2.067 4
Facing
APMX
LF 90°KAPR
FHA
Flute Helix Angle
46.5 46.5 46.5 46.5 46.5 46.5
Slabbing
Ramping
Corkscrew
CCMS DHUB
When assembling, be sure tip is seated firmly on shank with no gap. Tightening Torque: T05=60in*lbs, T06=90in*lbs, T08=130in*lbs, T10=250in*lbs, T12=250in*lbs, T15=350in*lbs. No lubricant on adaption. Wrenches sold separately.
47D-3146TQRQ01 47D-3756T6RQ01 47D-5075T8RQ01 47D-6293TRRQ01 47D-7511TSRQ03 47D-1015TURQ03
**OPTIONAL** Thin Wrench
WS-0043 WS-0029 WS-0030 WS-0044 WS-0059 WS-0061
47D HARDWARE
**OPTIONAL** Torque Wrench
DT-60-06 DT-90-08 DT-130-10 DT-250-13 DT-250-16 DT-350-20
