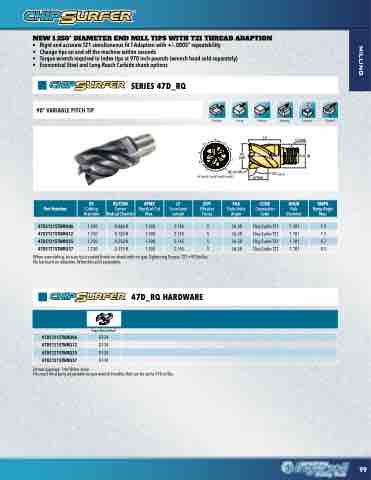

NEW 1.250" DIAMETER END MILL TIPS WITH T21 THREAD ADAPTION
• • • •
Rigid and accurate T21 simultaneous fit T-Adaption with +/-.0005” repeatability Change tips on and off the machine within seconds
Torque wrench required to index tips at 970 inch pounds (wrench head sold separately) Economical Steel and Long-Reach Carbide shank options
milling
90° VARIABLE PITCH TIP
Part Number
47DE1215TWRQ06 47DE1215TWRQ12 47DE1215TWRQ25 47DE1215TWRQ37
DC
Cutting Diameter
1.250 1.250 1.250 1.250
RE/CHW
Corner Radius/Chamfer
0.060 R
0.120 R
0.250 R
0.375 R
APMX
Depth of Cut Max.
LF
Functional Length
ZEFF
FHA
Flute Helix Angle
36-38 36-38 36-38 36-38
CCMS
DHUB
Hub Diameter
1.181 1.181 1.181 1.181
RMPX
Ramp Angle Max.
1.5 1.3 0.7 0.5
When assembling, be sure tip is seated firmly on shank with no gap. Tightening Torque: T21=970in/lbs.
No lubricant on adaption. Wrenches sold separately.
47DE1215TWRQ06 47DE1215TWRQ12 47DE1215TWRQ25 47DE1215TWRQ37
Torque Wrench Head*
DT-24 DT-24 DT-24 DT-24
24mm opening: 14x18mm drive.
Fits most third party adjustable torque wrench handles that can be set to 970 in/lbs.
SERIES 47D_RQ
1.500 2.165 5 1.500 2.165 5 1.500 2.165 5 1.500 2.165 5
47D_RQ HARDWARE
Effective Flutes
Connection Code
Chip Surfer T21 Chip Surfer T21 Chip Surfer T21 Chip Surfer T21
Shoulder
Facing
DC (e8)
Slabbing
Corkscrew
CCMS DHUB
90°KAPR
Channel
RE/CHW
APMX
LF
Ramping
