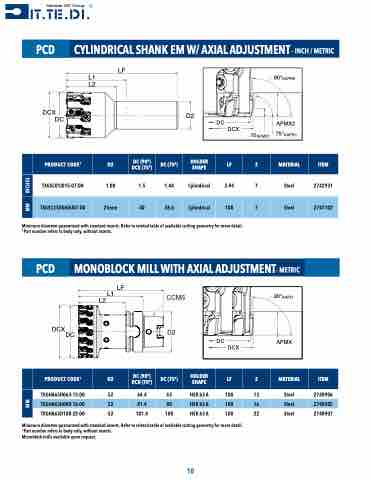

PCD CYLINDRICAL SHANK EM W/ AXIAL ADJUSTMENT - INCH / METRIC
DCX DC
PRODUCT CODE1
TXGSC01I015-07-00
TXGSC25D040U07-00
D2
DC DCX
.10APMX1
L1 L2
LF
90°KAPR2
APMX2 75°KAPR1
MATERIAL
Steel Steel
D2
1.00
25mm
DC (90o) DCX (75o)
1.5
40
DC (75o)
1.44
38.6
HOLDER SHAPE
Cylindrical
Cylindrical
LF Z
3.94 7
100 7
ITEM
2742931
2747102
Minimum diameter guaranteed with standard inserts. Refer to related table of available cutting geometry for more detail. 1 Part number refers to body only, without inserts.
PCD MONOBLOCK MILL WITH AXIAL ADJUSTMENT- METRIC
L2L1 LF DCX DC
CCMS D2
DC DCX
LF Z
100 13 100 16 100 22
90°KAPR
APMX
MATERIAL
Steel Steel Steel
PRODUCT CODE1
TXGHA63D063-13-00 TXGHA63D080-16-00 TXGHA63D100-22-00
D2 DC (90o) DC (75o) DCX (75o)
52 64.4 63 52 81.4 80 52 101.4 100
HOLDER SHAPE
HSK 63 A HSK 63 A HSK 63 A
ITEM
2748906
2748905
2748907
MM MM INCHES
Minimum diameter guaranteed with standard inserts. Refer to related table of available cutting geometry for more detail. 1 Part number refers to body only, without inserts.
Monoblock mills available upon request.
