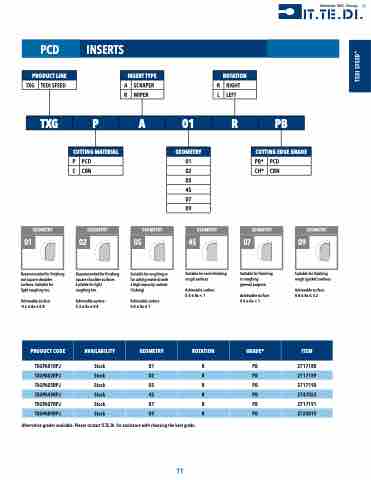

Page 11 - CAT-027-6 IT.TE.DI. Catalog

PCD
INSERTS
INSERT TYPE
A
SCRAPER
R
WIPER
ROTATION
R
RIGHT
L
LEFT
PRODUCT LINE
TXG
TEDI SFEED
TXG
P
A
01
R
PB
CUTTING MATERIAL
P
PCD
C
CBN
GEOMETRY
01
02
05
45
07
09
CUTTING EDGE GRADE
PB*
PCD
CH*
CBN
GEOMETRY
01
GEOMETRY
02
GEOMETRY
05
GEOMETRY
45
GEOMETRY
07
GEOMETRY
09
Recommended for finishing not square shoulder surfaces. Suitable for
light roughing too.
Achievable surface: 0.3≤Ra≤0.8
TXGPA01RPJ TXGPA05RPJ TXGPA07RPJ
Recommended for finishing square shoulder surfaces. Suitable for light
roughing too.
Achievable surface: 0.3≤Ra≤0.8
Stock Stock Stock
Suitable for roughing or for cutting material with a high impurity content. (Cubing)
Achievable surface: 0.4≤Ra≤1
01 05 07
Suitable for semi-finishing rough surfaces
Achievable surface: 0.4 ≤ Ra < 1
Suitable for finishing or roughing - general purpose.
Achievable surface: 0.4 ≤ Ra < 1
PB PB PB
Suitable for finishing rough (gasket) surfaces
Achievable surface: 0.8 ≤ Ra ≤ 3.2
2717188
2717190
2717191
PRODUCT CODE
AVAILABILITY
GEOMETRY
ROTATION
GRADE*
ITEM
R R R
TXGPA02RPJ
Stock
02
R
PB
2717189
TXGPA45RPJ
Stock
45
R
PB
2747053
TXGPA09RPJ
Stock
09
R
PB
2724019
Alternative grades available. Please contact IT.TE.DI. for assistance with choosing the best grade.
