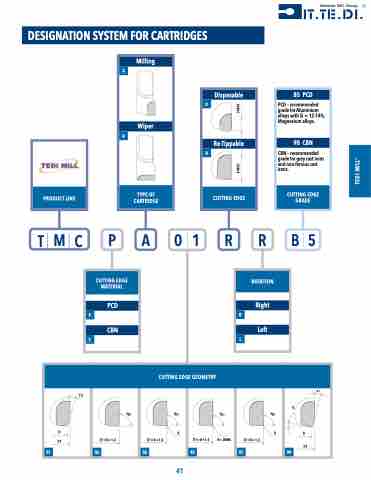

DESIGNATION SYSTEM FOR CARTRIDGES
Milling
A
Wiper
R
TYPE OF CARTRIDGE
B5 PCD
PCD – recommended grade for Aluminium alloys with Si < 12-14%, Magnesium alloys.
90 CBN
CBN – recommended grade for grey cast irons and non-ferrous cast irons.
CUTTING EDGE GRADE
Disposable
D
Re-Tippable
R
CUTTING EDGE
PRODUCT LINE
TMCPA01RRB5
ROTATION
Right
R
Left
L
CUTTING EDGE MATERIAL
PCD
P
CBN
C
CUTTING EDGE GEOMETRY
01
D D1
02
D1=D+1,4
05
R D1=D+1,4
45
D1=D+1,4 R=.8MM
07
R D1=D+1,4
09
D D1
41
6 MAX 3 MAX
TEDI MILL®
15°
b°
90°
90°
90°
90°
a°
