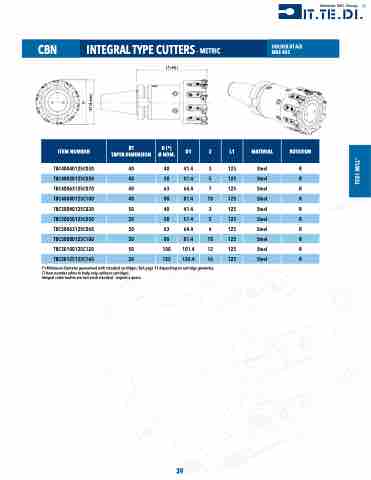

CBN INTEGRAL TYPE CUTTERS - METRIC
HOLDER BT A/B MAS 403
ITEM NUMBER
TBC40040125C030 TBC40050125C050 TBC40063125C070 TBC40080125C100 TBC50040125C030 TBC50050125C050 TBC50063125C060 TBC50080125C100 TBC50100125C120
TBC50125125C160
BT
TAPER DIMENSION
40
40
40
40
50
50
50
50
50
50
D (*) D1 Ø NOM.
40 41.4 50 51.4 63 64.4 80 81.4 40 41.4 50 51.4 63 64.4 80 81.4 100 101.4 125 126.4
Z L1
3 125
5 125
7 125
10 125 3 125 5 125 6 125
10 125 12 125 16 125
MATERIAL
ROTATION
(*) Minimum diameter guaranteed with standard cartridges. Ref. page 31 depending on cartridge geometry. (1) Item number refers to body only, without cartridges.
Integral cutter bodies are non-stock standard - request a quote.
L1 (adj.)
TEDI MILL®
D
D1 (d.max)
39
Steel R Steel R Steel R Steel R Steel R Steel R Steel R Steel R Steel R Steel R
