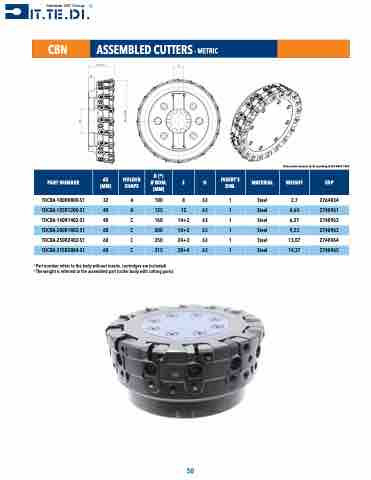

P. 50
CBN
ASSEMBLED CUTTERS - METRIC
Drive notch measure (A, B) according to ISO 6462-1983
PART NUMBER
d2 (MM)
HOLDER SHAPE
D (*) Ø NOM. (MM)
Z
H
INSERT'S DIM.
MATERIAL
WEIGHT
EDP
TOCBA-100R0800-S1
32
A
100
8
63
1
Steel
2,7
2764834
TOCBA-125R1200-S1
40
A
125
12
63
1
Steel
4,64
2740961
TOCBA-160R1402-S1
40
C
160
14+2
63
1
Steel
6,37
2740962
TOCBA-200R1802-S1
60
C
200
18+2
63
1
Steel
9,23
2740963
TOCBA-250R2402-S1
60
C
250
24+2
63
1
Steel
13,07
2740964
TOCBA-315R2804-S1
60
C
315
28+4
63
1
Steel
19,37
2740965
1 Part number refers to the body without inserts. (cartridges are included)
2 The weight is referred to the assembled part (cutter body with cutting parts)
