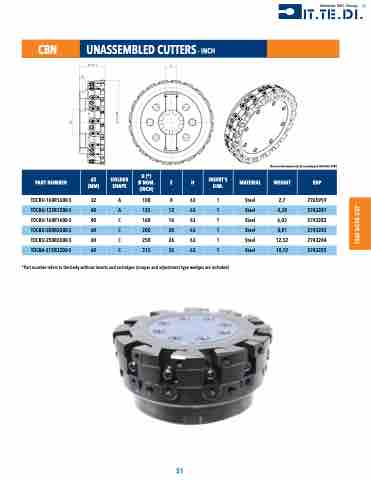

Page 51 - CAT-027-6 IT.TE.DI. Catalog
P. 51
CBN
UNASSEMBLED CUTTERS - INCH
Drive notch measure (A, B) according to ISO 6462-1983
PART NUMBER
d2 (MM)
HOLDER SHAPE
D (*) Ø NOM. (INCH)
Z
H
INSERT'S DIM.
MATERIAL
WEIGHT
EDP
TOCBU-160R1600-S
32
A
100
8
63
1
Steel
2,7
2765959
TOCBU-125R1200-S
40
A
125
12
63
1
Steel
4,38
2743281
TOCBU-160R1600-S
40
C
160
16
63
1
Steel
6,03
2743282
TOCBU-200R2000-S
60
C
200
20
63
1
Steel
8,81
2743283
TOCBU-250R2600-S
60
C
250
26
63
1
Steel
12,52
2743284
TOCBA-315R3200-S
60
C
315
32
63
1
Steel
18,72
2743285
4 Part number refers to the body without inserts and cartridges (scraper and adjustment type wedges are included)
51
TEDI OCTO CUT®
