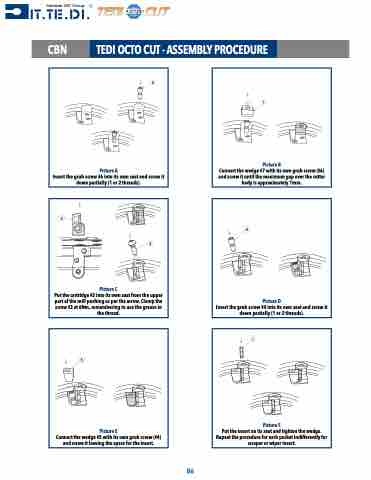

CBN TEDI OCTO CUT - ASSEMBLY PROCEDURE
6
Picture A
7
Picture B
Connect the wedge #7 with its own grub screw (#6) and screw it until the maximum gap over the cutter body is approximately 1mm.
4
Picture D
Insert the grub screw #4 into its own seat and screw it down partially (1 or 2 threads).
Insert the grub screw #6 into its own seat and screw it down partially (1 or 2 threads).
2
3
Picture C
Put the cartridge #2 into its own seat from the upper part of the mill pushing as per the arrow. Clamp the screw #3 at 6Nm, remembering to use the grease in the thread.
5
Picture E
Connect the wedge #5 with its own grub screw (#4) and screw it leaving the space for the insert.
1
86
Picture F
Put the insert on its seat and tighten the wedge. Repeat the procedure for each pocket indifferently for scraper or wiper insert.
