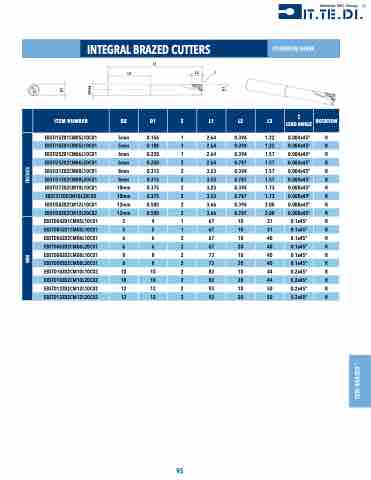

Page 95 - CAT-027-6 IT.TE.DI. Catalog

INTEGRAL BRAZED CUTTERS
CYLINDRICAL SHANK
L1
L3 L2
ITEM NUMBER
D2
D1
Z
L1
L2
L3
ɪ
LEAD ANGLE
ROTATION
EBSTI15Z01CM05L10C01
5mm
0.156
1
2.64
0.394
1.22
0.004x45o
R
EBSTI18Z01CM05L10C01
5mm
0.188
1
2.64
0.394
1.22
0.004x45o
R
EBSTI25Z01CM06L10C01
6mm
0.250
1
2.64
0.394
1.57
0.004x45o
R
EBSTI25Z02CM06L20C01
6mm
0.250
2
2.64
0.787
1.57
0.004x45o
R
EBSTI31Z02CM08L10C01
8mm
0.313
2
3.23
0.394
1.57
0.004x45o
R
EBSTI31Z02CM08L20C01
8mm
0.313
2
3.23
0.787
1.57
0.004x45o
R
EBSTI37Z02CM10L10C01
10mm
0.375
2
3.23
0.394
1.73
0.008x45o
R
EBST37Z02CM10L20C02
10mm
0.375
2
3.23
0.787
1.73
0.008x45o
R
EBSTI50Z02CM12L10C01
12mm
0.500
2
3.66
0.394
2.00
0.008x45o
R
EBSTI50Z02CM12L20C02
12mm
0.500
2
3.66
0.787
2.00
0.008x45o
R
EBSTD04Z01CM05L10C01
5
4
1
67
10
31
0.1x45°
R
EBSTD05Z01CM05L10C01
5
5
1
67
10
31
0.1x45°
R
EBSTD06Z02CM06L10C01
6
6
2
67
10
40
0.1x45°
R
EBSTD06Z02CM06L20C01
6
6
2
67
20
40
0.1x45°
R
EBSTD08Z02CM08L10C01
8
8
2
73
10
40
0.1x45°
R
EBSTD08Z02CM08L20C01
8
8
2
73
20
40
0.1x45°
R
EBSTD10Z02CM10L10C02
10
10
2
82
10
44
0.2x45°
R
EBSTD10Z02CM10L20C02
10
10
2
82
20
44
0.2x45°
R
EBSTD12Z02CM12L10C02
12
12
2
93
10
50
0.2x45°
R
EBSTD12Z02CM12L20C02
12
12
2
93
20
50
0.2x45°
R
95
TEDI BRAZEDTM
MM INCHES
D1
D2 h6
D1
