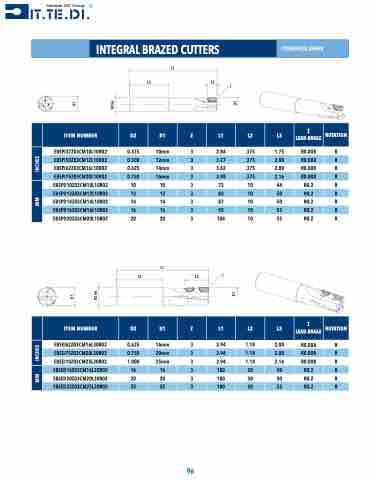

Page 96 - CAT-027-6 IT.TE.DI. Catalog

INTEGRAL BRAZED CUTTERS
CYLINDRICAL SHANK
L1
L3 L2
ITEM NUMBER
D2
D1
Z
L1
L2
L3
ɪ
LEAD ANGLE
ROTATION
EBSPI37Z03CM10L10R02
0.375
10mm
3
2.84
.375
1.75
R0.008
R
EBSPI50Z03CM12L10R02
0.500
12mm
3
3.27
.375
2.00
R0.008
R
EBSPI62Z03CM16L10R02
0.625
14mm
3
3.62
.375
2.00
R0.008
R
EBSPI75Z03CM20L10R02
0.750
16mm
3
3.98
.375
2.16
R0.008
R
EBSPD10Z03CM10L10R02
10
10
3
72
10
44
R0.2
R
EBSPD12Z03CM12L10R02
12
12
3
83
10
50
R0.2
R
EBSPD14Z03CM14L10R02
14
14
3
87
10
50
R0.2
R
EBSPD16Z03CM16L10R02
16
16
3
92
10
53
R0.2
R
EBSPD20Z03CM20L10R02
20
20
3
104
10
55
R0.2
R
L1
L3 L2
ITEM NUMBER
D2
D1
Z
L1
L2
L3
ɪ
LEAD ANGLE
ROTATION
EBSEI62Z03CM16L30R02
0.625
16mm
3
3.94
1.18
2.00
R0.008
R
EBSEI75Z03CM20L30R02
0.750
20mm
3
3.94
1.18
2.00
R0.008
R
EBSEI10Z03CM25L30R02
1.000
25mm
3
3.94
1.18
2.16
R0.008
R
EBSED16Z03CM16L30R02
16
16
3
100
30
50
R0.2
R
EBSED20Z03CM20L30R02
20
20
3
100
30
50
R0.2
R
EBSED25Z03CM25L30R02
25
25
3
100
30
55
R0.2
R
96
MM INCHES
MM INCHES
D1
D1
D2 h6
D1
D1
D2 h6
