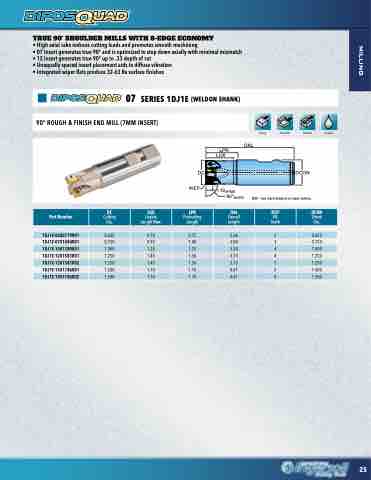

TRUE 90° SHOULDER MILLS WITH 8-EDGE ECONOMY
• High axial rake reduces cutting loads and promotes smooth machining
• 07 Insert generates true 90° and is optimized to step down axially with minimal mismatch • 12 Insert generates true 90° up to .33 depth of cut
• Unequally spaced insert placement aids to diffuse vibration
• Integrated wiper flats produce 32-63 Ra surface finishes
07 SERIES 1DJ1E (WELDON SHANK) 90° ROUGH & FINISH END MILL (7MM INSERT)
milling
Part Number
1DJ1E-0600779R01 1DJ1E-0701084R01 1DJ1E-1001280R01 1DJ1E-1201581R01 1DJ1E-1201581R02 1DJ1E-1501786R01 1DJ1E-1501786R02
DC LUX
Cutting Usable Dia. Length Max.
0.625 0.70 0.750 0.95 1.000 1.20 1.250 1.45 1.250 1.45 1.500 1.70 1.500 1.70
OAL ZEFF
Overall Eff. Length Teeth
2.66 2 3.00 3 3.50 4 3.75 4 3.75 5 4.41 5 4.41 8
DCON
Shank Dia.
0.625 0.750 1.000 1.250 1.250 1.500 1.500
DC
WEP
LPR
Protruding Length
0.75 1.00 1.25 1.50 1.50 1.75 1.75
DCON 90°KAPR WEP - See insert drawing for wiper options.
OAL LUX
LPR
.19APMX
Facing
Shoulder
Channel
Coolant
