P. 26
26

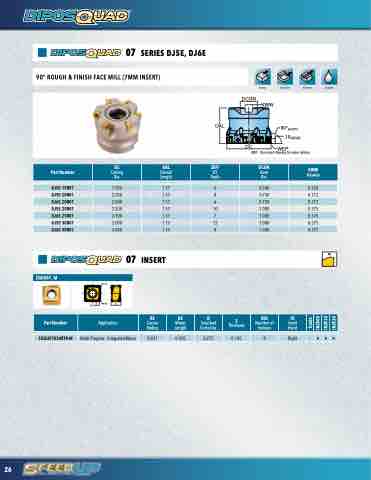

07 SERIES DJ5E, DJ6E 90° ROUGH & FINISH FACE MILL (7MM INSERT)
Part Number
DJ5E-15R01 DJ5E-20R01 DJ6E-20R01 DJ5E-25R01 DJ6E-25R01 DJ5E-30R01 DJ6E-30R01
SQGU07_M
Part Number
SQGU070308TR-M
DC
Cutting Dia.
1.500 2.000 2.000 2.500 2.500 3.000 3.000
OAL ZEFF
Overall Eff. Length Teeth
1.57 6 1.57 8 1.57 6 1.57 10 1.57 7 1.75 12 1.75 8
DCON
Bore Dia.
0.500 0.750 0.750 1.000 1.000 1.000 1.000
KWW
Keyway
0.250 0.312 0.312 0.375 0.375 0.375 0.375
BS
RE S
Application
07 INSERT IC
M
Multi-Purpose - Integrated Wiper
Corner Radius
0.031
Wiper Length
0.035
Inscribed Circle Dia.
0.275
Thickness
0.165
Number of Indexes
8
Insert Hand
Right
• •
•
OAL
DC
RE BS IC S NOI IH
Facing
DCON KWW
Shoulder
90°KAPR .19APMX
WEP
Channel Coolant
WEP - See insert drawing for wiper options.
Grade IN2505 IN2510 IN2530
