PCD / CBN

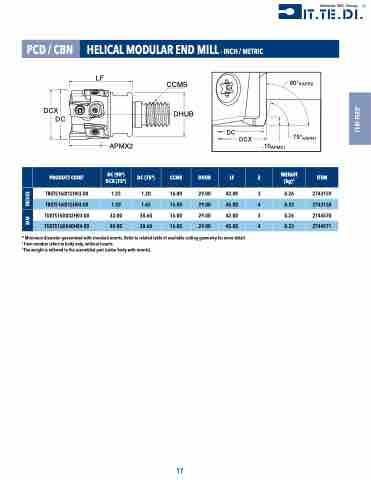

HELICAL MODULAR END MILL - INCH / METRIC
90°KAPR2
DC DCX
75°KAPR1
.10APMX1
DCX DC
LF
APMX2
CCMS DHUB
PRODUCT CODE1
DC (90o) DCX (75o)
DC (75o)
CCMS
DHUB
LF
Z
WEIGHT (kg)2
ITEM
TRGTS16I012H03-00 1.25 1.20 16.00 29.00 42.00 3 0.26 TUGTS16D032H03-00 32.00 30.60 16.00 29.00 42.00 3 0.26
* Minimum diameter guaranteed with standard inserts. Refer to related table of available cutting geometry for more detail. 1 Item number refers to body only, without inserts.
2 The weight is referred to the assembled part (cutter body with inserts).
2743159
2744570
TRGTS16I015H04-00
1.50
1.45
16.00
29.00
45.00
4
0.33
2743160
TUGTS16D040H04-00
40.00
38.60
16.00
17
29.00
45.00
4
0.33
2744571
MM INCHES
TEDI FEED®
