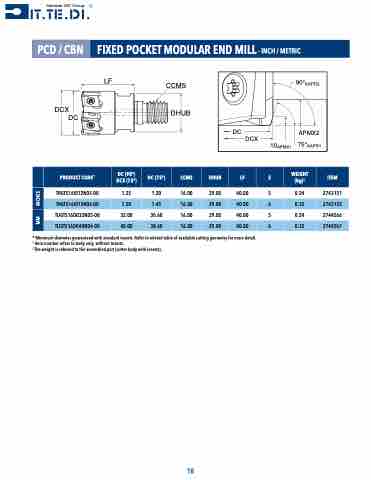

Page 18 - CAT-027-6 IT.TE.DI. Catalog

PCD / CBN
FIXED POCKET MODULAR END MILL - INCH / METRIC
90°KAPR2
DC DCX
APMX2
.10APMX1
75°KAPR1
LF
CCMS DHUB
DCX DC
PRODUCT CODE1
DC (90o) DCX (75o)
DC (75o)
CCMS
DHUB
LF
Z
WEIGHT (kg)2
ITEM
TRGTS16I012N05-00 1.25 1.20 16.00 29.00 40.00 5 0.24 TUGTS16D032N05-00 32.00 30.60 16.00 29.00 40.00 5 0.24
* Minimum diameter guaranteed with standard inserts. Refer to related table of available cutting geometry for more detail. 1 Item number refers to body only, without inserts.
2 The weight is referred to the assembled part (cutter body with inserts).
2743151
2744566
TRGTS16I015N06-00
1.50
1.45
16.00
29.00
40.00
6
0.35
2743152
TUGTS16D040N06-00
40.00
38.60
16.00
18
29.00
40.00
6
0.35
2744567
MM INCHES
