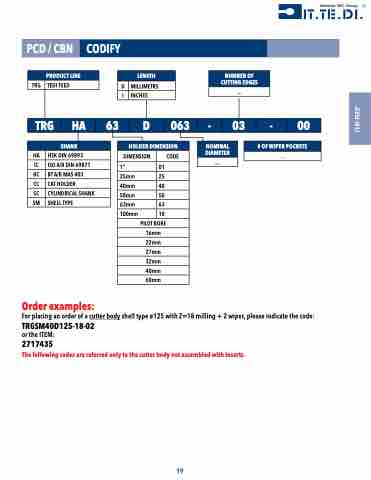

Page 19 - CAT-027-6 IT.TE.DI. Catalog

PCD / CBN
CODIFY
TRG
PRODUCT LINE
TEDI FEED
D
LENGTH
NUMBER OF CUTTING EDGES
MILLIMETRS
I
INCHES
..
TRG
HA
63
D
063
-
03
-
00
SHANK
HA
HSK DIN 69893
IC
ISO A/B DIN 69871
BC
BT A/B MAS 403
CC
CAT HOLDER
SC
CYLINDRICAL SHANK
SM
SHELL TYPE
HOLDER DIMENSION
DIMENSION
CODE
1”
01
25mm
25
40mm
40
50mm
50
63mm
63
100mm
10
PILOT BORE
16mm
22mm
27mm
32mm
40mm
60mm
# OF WIPER POCKETS
..
NOMINAL DIAMETER
...
Order examples:
For placing an order of a cutter body shell type ø125 with Z=18 milling + 2 wiper, please indicate the code:
TRGSM40D125-18-02
or the ITEM:
2717435
The following codes are referred only to the cutter body not assembled with inserts.
19
TEDI FEED®
