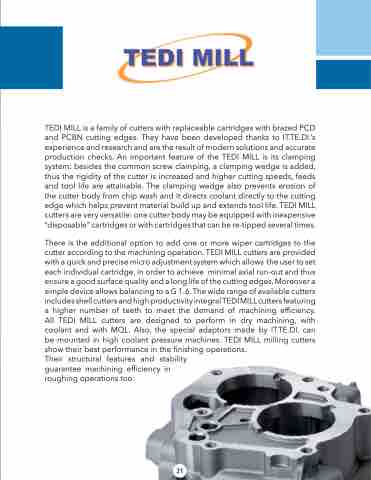

TEDI MILL is a family of cutters with replaceable cartridges with brazed PCD and PCBN cutting edges. They have been developed thanks to IT.TE.DI.’s experience and research and are the result of modern solutions and accurate production checks. An important feature of the TEDI MILL is its clamping system: besides the common screw clamping, a clamping wedge is added, thus the rigidity of the cutter is increased and higher cutting speeds, feeds and tool life are attainable. The clamping wedge also prevents erosion of the cutter body from chip wash and it directs coolant directly to the cutting edge which helps prevent material build up and extends tool life. TEDI MILL cutters are very versatile: one cutter body may be equipped with inexpensive “disposable” cartridges or with cartridges that can be re-tipped several times.
There is the additional option to add one or more wiper cartridges to the cutter according to the machining operation. TEDI MILL cutters are provided with a quick and precise micro adjustment system which allows the user to set each individual cartridge, in order to achieve minimal axial run-out and thus ensure a good surface quality and a long life of the cutting edges. Moreover a simple device allows balancing to a G 1.6. The wide range of available cutters includes shell cutters and high productivity integral TEDI MILL cutters featuring a higher number of teeth to meet the demand of machining efficiency. All TEDI MILL cutters are designed to perform in dry machining, with coolant and with MQL. Also, the special adaptors made by IT.TE.DI. can be mounted in high coolant pressure machines. TEDI MILL milling cutters show their best performance in the finishing operations.
Their structural features and stability guarantee machining efficiency in roughing operations too.
