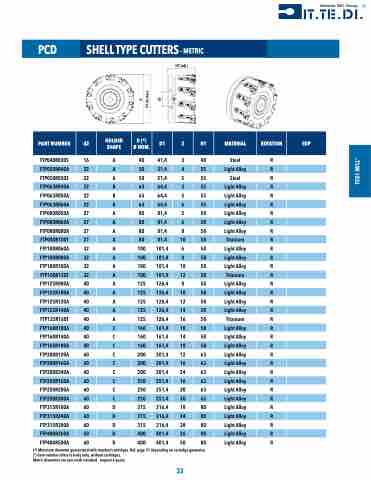

Page 33 - CAT-027-6 IT.TE.DI. Catalog

PCD
SHELL TYPE CUTTERS - METRIC
PART NUMBER
FTP040R030S FTP050R040A FTP050R050S FTP063R030A FTP063R050A FTP063R060A FTP080R050A FTP080R060A FTP080R080A FTP080R100T FTP100R060A FTP100R080A FTP100R100A FTP100R120T FTP125R080A FTP125R100A FTP125R120A FTP125R140A FTP125R160T FTP160R100A FTP160R140A FTP160R180A FTP200R120A FTP200R160A FTP200R240A FTP250R160A FTP250R200A FTP250R300A FTP315R180A FTP315R240A FTP315R380A FTP400R260A
FTP400R500A
d2
16
22
22
22
22
22
27
27
27
27
32
32
32
32
40
40
40
40
40
40
40
40
60
60
60
60
60
60
60
60
60
60
60
HOLDER D (*) SHAPE Ø NOM.
A 40
A 50
A 50
B 63
B 63
B 63
A 80
A 80
A 80
A 80
A 100
A 100
A 100
A 100
A 125
A 125
A 125
A 125
A 125
C 160
C 160
C 160
C 200
C 200
C 200
C 250
C 250
C 250
D 315
D 315
D 315
D 400
D 400
D1 Z H1
41,4 3 48 51,4 4 55 51,4 5 55 64,4 3 55 64,4 5 55 64,4 6 55 81,4 5 58 81,4 6 58 81,4 8 58 81,4 10 58
101,4 6 58
101,4 8 58
101,4 10 58
101,4 12 58
126,4 8 58
126,4 10 58
126,4 12 58
126,4 14 58
126,4 16 58
161,4 10 58
161,4 14 58
161,4 18 58
201,4 12 63
201,4 16 63
201,4 24 63
251,4 16 63
251,4 20 63
251,4 30 63
316,4 18 80
316,4 24 80
316,4 38 80
401,4 26 80
401,4 50 80
MATERIAL
ROTATION EDP
(*) Minimum diameter guaranteed with standard cartridges. Ref. page 31 depending on cartridge geometry. (1) Item number refers to body only, without cartridges.
Metric diameters are non-stock standard - request a quote.
H1 (adj.)
TEDI MILL®
D
D1 (d.max)
d2
33
Steel R Light Alloy R Steel R Light Alloy R Light Alloy R Light Alloy R Light Alloy R Light Alloy R Light Alloy R Titanium R Light Alloy R Light Alloy R Light Alloy R Titanium R Light Alloy R Light Alloy R Light Alloy R Light Alloy R Titanium R Light Alloy R Light Alloy R Light Alloy R Light Alloy R Light Alloy R Light Alloy R Light Alloy R Light Alloy R Light Alloy R Light Alloy R Light Alloy R Light Alloy R Light Alloy R Light Alloy R
