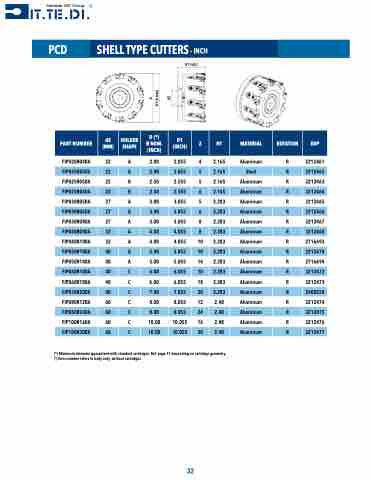

Page 32 - CAT-027-6 IT.TE.DI. Catalog

PCD
SHELL TYPE CUTTERS - INCH
D
D1 (d.max)
d2
PART NUMBER
FIP020R040A FIP020R050S FIP025R050A FIP025R060A FIP030R050A FIP030R060A FIP030R080A FIP040R080A FIP040R100A FIP050R100A FIP050R140A FIP060R100A FIP060R180A FIP070R200A FIP080R120A FIP080R240A FIP100R160A FIP100R300A
d2 HOLDER (MM) SHAPE
22 A 22 A 22 B 22 B 27 A 27 A 27 A 32 A 32 A 40 A 40 A 40 C 40 C 40 C 60 C 60 C 60 C 60 C
D (*) Ø NOM. (INCH)
2.00 2.00 2.50 2.50 3.00 3.00 3.00 4.00 4.00 5.00 5.00 6.00 6.00 7.00 8.00 8.00 10.00 10.00
H1 (adj.)
D1
(INCH) Z H1
2.055 4 2.165 2.055 5 2.165 2.555 5 2.165 2.555 6 2.165 3.055 5 2.283 3.055 6 2.283 3.055 8 2.283 4.055 8 2.283 4.055 10 2.283 5.055 10 2.283 5.055 14 2.283 6.055 10 2.283 6.055 18 2.283 7.055 20 2.283 8.055 12 2.48 8.055 24 2.48
10.055 16 2.48 10.055 30 2.48
MATERIAL
Aluminum Steel Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
ROTATION EDP
R 3212461 R 3212462 R 3212463 R 3212464 R 3212465 R 3212466 R 3212467 R 3212468 R 2716693 R 3212470 R 2716694 R 3212472 R 3212473 R 2900558 R 3212474 R 3212475 R 3212476 R 3212477
(*) Minimum diameter guaranteed with standard cartridges. Ref. page 31 depending on cartridge geometry. (1) Item number refers to body only, without cartridges.
32
