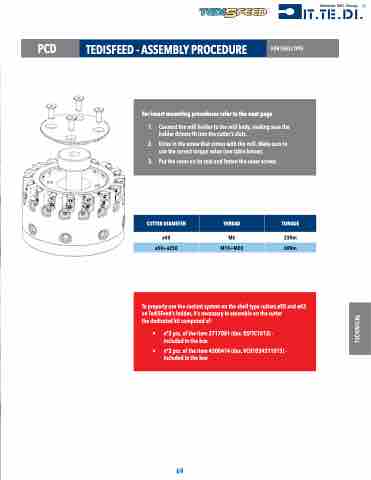

PCD TEDISFEED - ASSEMBLY PROCEDURE
FOR SHELL TYPE
For insert mounting procedures refer to the next page
1. Connect the mill holder to the mill body, making sure the holder drivers fit into the cutter's slots.
2. Drive in the screw that comes with the mill. Make sure to use the correct torque value (see table below).
3. Put the cover on its seat and fasten the cover screws.
CUTTER DIAMETER
ø40 ø50÷ø250
THREAD
TORQUE
M6 23Nm M10÷M20 60Nm
To properly use the coolant system on the shell type cutters ø50 and ø63 on TediSFeed’s holder, it’s necessary to assemble on the cutter
the dedicated kit composed of:
• n°2 pcs. of the item 2717081 (des. RSFTC1012) - included in the box
• n°2 pcs. of the item 4300414 (des. VC01034211015) - included in the box
