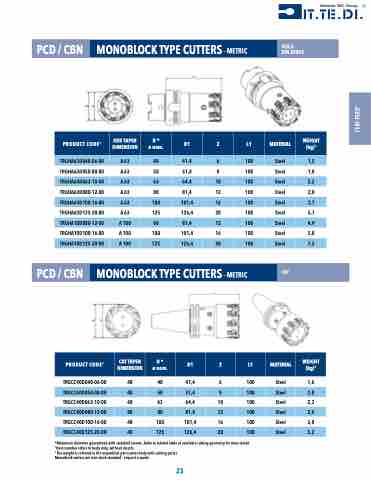

Page 23 - CAT-027-6 IT.TE.DI. Catalog

PCD / CBN
MONOBLOCK TYPE CUTTERS - METRIC
HSK A
DIN 69893
PRODUCT CODE1
HSK TAPER DIMENSION
D* ø nom.
D1
Z
L1
MATERIAL
WEIGHT (kg)3
TRGHA63D040-06-00
A63
40
41,4
6
100
Steel
1,5
TRGHA63D050-80-00 A63 50 51,4 8 100 Steel 1,8 TRGHA63D080-12-00 A63 80 81,4 12 100 Steel 2,8 TRGHA63D125-20-00 A63 125 126,4 20 100 Steel 5,1 TRGHA10D100-16-00 A100 100 101,4 16 100 Steel 5,8
TRGHA63D063-10-00
A63
63
64,4
10
100
Steel
2,2
TRGHA63D100-16-00
A63
100
101,4
16
100
Steel
3,7
TRGHA10D080-12-00
A 100
80
81,4
12
100
Steel
4,9
TRGHA10D125-20-00
A 100
125
126,4
20
100
Steel
7,2
PCD / CBN
MONOBLOCK TYPE CUTTERS - METRIC
CAT
PRODUCT CODE1
CAT TAPER DIMENSION
D* ø nom.
D1
Z
L1
MATERIAL
WEIGHT (kg)3
TRGCC40D040-06-00 TRGCC40D063-10-00 TRGCC40D100-16-00
40 40 40 63 40 100
41,4 6 100
64,4 10 100 101,4 16 100
Steel 1,6 Steel 2,3 Steel 3,8
TRGCC40D050-08-00
40
50
51,4
8
100
Steel
2,0
TRGCC40D080-12-00
40
80
81,4
12
100
Steel
2,9
TRGCC40D125-20-00
40
125
126,4
20
100
Steel
5,2
*Minimum diameter guaranteed with standard inserts. Refer to related table of available cutting geometry for more detail. 1Item number refers to body only, without inserts.
3 The weight is referred to the assembled part (cutter body with cutting parts).
Monoblock cutters are non-stock standard - request a quote.
23
