P. 34

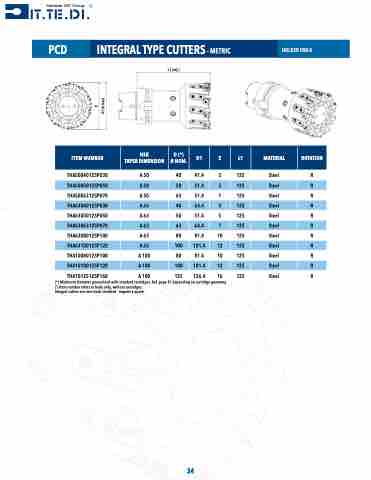

PCD INTEGRAL TYPE CUTTERS - METRIC
L1 (adj.)
HOLDER HSK A
D
D1 (d.max)
ITEM NUMBER HSK D (*) D1 TAPER DIMENSION Ø NOM.
THA50040125P030 A50 40 41.4
THA50050125P050 A50 50 51.4
THA50063125P070 A50 63 51.4
THA63040125P030 A63 40 64.4
THA63050125P050 A63 50 51.4
THA63063125P070 A63 63 64.4
THA63080125P100 A63 80 81.4 10 125 Steel R THA63100125P120 A63 100 101.4 12 125 Steel R THA10080125P100 A100 80 81.4 10 125 Steel R THA10100125P120 A100 100 101.4 12 125 Steel R
THA10125125P160 A100 125 126.4 16 125 Steel R (*) Minimum diameter guaranteed with standard cartridges. Ref. page 31 depending on cartridge geometry.
(1) Item number refers to body only, without cartridges.
Integral cutters are non-stock standard - request a quote.
34
Z L1 MATERIAL ROTATION
3 125 Steel R 5 125 Steel R 7 125 Steel R 3 125 Steel R 5 125 Steel R 7 125 Steel R
