P. 35
PCD

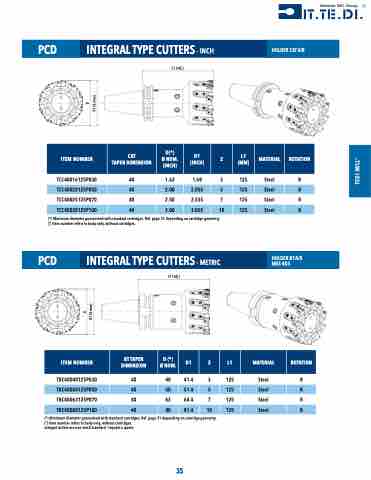

INTEGRAL TYPE CUTTERS - INCH
HOLDER CAT A/B
D
D1 (d.max)
D
D1 (d.max)
TEDI MILL®
ITEM NUMBER
CAT D(*) D1 L1
MATERIAL
ROTATION
TCC40016125P030 TCC40020125P050 TCC40025125P070
TCC40030125P100
1.63 2.00 2.50 3.00
Steel R Steel R Steel R Steel R
HOLDER BT A/B MAS 403
TAPER DIMENSION
40 40 40 40
Ø NOM. (INCH)
(INCH) Z
1.68 3 2.055 5 2.555 7 3.055 10
(MM)
125
125
125
125
(*) Minimum diameter guaranteed with standard cartridges. Ref. page 31 depending on cartridge geometry. (1) Item number refers to body only, without cartridges.
PCD INTEGRAL TYPE CUTTERS - METRIC
ITEM NUMBER BT TAPER DIMENSION
TBC40040125P030 40
TBC40050125P050 40
TBC40063125P070 40
TBC40080125P100 40
D (*) D1 Z L1 Ø NOM.
MATERIAL ROTATION
(*) Minimum diameter guaranteed with standard cartridges. Ref. page 31 depending on cartridge geometry. (1) Item number refers to body only, without cartridges.
Integral cutters are non-stock standard - request a quote.
L1 (adj.)
L1 (adj.)
40 41.4 3 125 Steel R 50 51.4 5 125 Steel R 63 64.4 7 125 Steel R 80 81.4 10 125 Steel R
35
