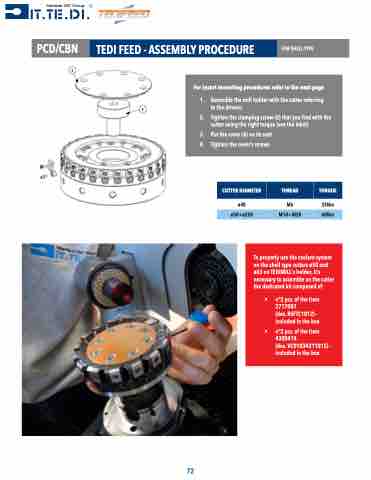

PCD/CBN TEDI FEED - ASSEMBLY PROCEDURE
FOR SHELL TYPE
6
5
For insert mounting procedures refer to the next page
1. Assemble the mill holder with the cutter referring to the drivers;
2. Tighten the clamping screw (5) that you find with the cutter using the right torque (see the label)
3. Put the cover (6) on its seat
4. Tighten the cover’s screws
CUTTER DIAMETER
ø40
ø50÷ø250
THREAD
TORQUE
M6 23Nm
M10÷M20 60Nm
To properly use the coolant system on the shell type cutters ø50 and ø63 on TEDIMILL's holder, it’s necessary to assemble on the cutter the dedicated kit composed of:
• n°2 pcs. of the item 2717081
(des. RSFTC1012) - included in the box
• n°2 pcs. of the item 4300414
(des. VC01034211015) - included in the box
